FPP-2S2Px26650-33-PW
$0.01
Description
| Packaging |

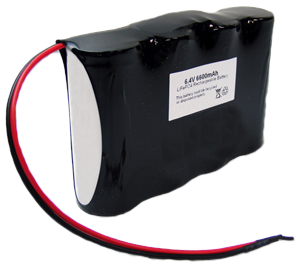

Four pieces of high quality 26650 3300mAh Lithium Iron phosphate cylindrical cell with PCM and wrapped in PVC shrink wrap |
| Nominal Voltage |
6.4V |
| Capacity |
Typical |
6600mAh |
| Minimum |
5940mAh |
| Charging Voltage |
|
7.3V |
| Standard Charge Current |
|
1980mAh |
| Max. Current |
Charge |
3300mAh (0.5C) |
| Discharge |
5000mAh (limited by PCM) |
| Ambient temperature |
Charge |
0°C to 5°C |
| Discharge |
-20°C to 60°C |
| Storage |
-20°C to 25°C |
| One Protection Circuit Module |
Overcharge |
>7.7V |
| Overdischarge |
<4.46V |
| Max. Cont. Current |
5A |
| Current Limit |
9-12A |
| Current Consumption |
20uA |
| Protection Circuit Resistance |
≤40mΩ |
| Short Circuit |
Yes |
| Dimensions |
105mm x 70mm x 27mm |
| Approx. Weight (g) |
350g |
| Thermistor |
|
No |
| Wiring & Connection |
2 wires (length=4″, size=20AWG) cable with red (+) and black (- or com). |
