| Charger Model Number |

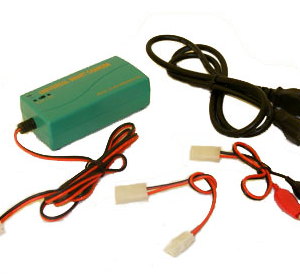

KD-MH018145 Smart Charger |
| Battery Pack Voltage |
6.0-12V |
| Input Voltage |
120~240V AC |
| OutPut |
Voltage |
14.5V DC Max |
| Constant Charge Current |
0.9A – 1.8A max selectable by switch only use 1.8A for ≥1.8A capacity |
| Max Output Power |
26W |
| Suit with Battery Type |
5-10 Cell battery packs NiMH with capacity ≥900mAh min Capacity |
| Short Circuit Protection |
Yes, with reverse polarity and over charge |
| LED Color |
Red |
Power on/ Charging |
| Green |
Full charge |
| Dimensions |
139.7mm L x 63.5mm W x 38mm H |
| Nominal Weight |
Approx. 272g |
| Connector |
optional when ordered |
