Description

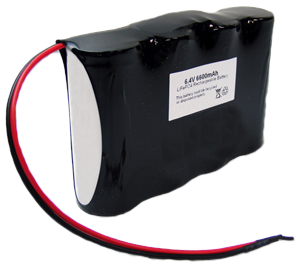

| Packaging | Four pieces of high quality 26650 3300mAh Lithium Iron phosphate cylindrical cell with PCM and wrapped in PVC shrink wrap | |
| Nominal Voltage | 6.4V | |
| Capacity | Typical | 6600mAh |
| Minimum | 5940mAh | |
| Charging Voltage | 7.3V | |
| Standard Charge Current | 1980mAh | |
| Max. Current | Charge | 3300mAh (0.5C) |
| Discharge | 5000mAh (limited by PCM) | |
| Ambient temperature | Charge | 0°C to 5°C |
| Discharge | -20°C to 60°C | |
| Storage | -20°C to 25°C | |
| One Protection Circuit Module | Overcharge | >7.7V |
| Overdischarge | <4.46V | |
| Max. Cont. Current | 5A | |
| Current Limit | 9-12A | |
| Current Consumption | 20uA | |
| Protection Circuit Resistance | ≤40mΩ | |
| Short Circuit | Yes | |
| Dimensions | 105mm x 70mm x 27mm | |
| Approx. Weight (g) | 350g | |
| Thermistor | No | |
| Wiring & Connection | 2 wires (length=4″, size=20AWG) cable with red (+) and black (- or com). | |
