Description

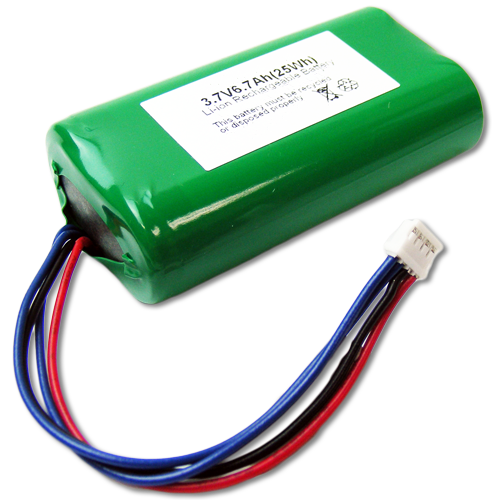

| Packaging | two pieces of high quality 3350mAh Lithium 18650 cells with Protection Circuit Module (PCM) and thermmsitor in Molex 87439-0400 | |
| Nominal Voltage | 3.7V | |
| Capacity | Typical | 6700 mAh (0.2C discharge) |
| Minimum | 6030 mAh | |
| Charging Voltage | 4.2V +/-0.05V | |
| Standard Charge Current | 2010mA (0.3C) | |
| Max. Current | Charge | 3350mA (0.5C) |
| Discharge | 5000mA (limit by PCM) | |
| Ambient temperature | Charge | 0 deg C to 45 deg C |
| Discharge | -20 deg C to 60 deg C | |
| Storage | -5 deg C to 35 deg C | |
| Discharge Cut-Off Voltage | 2.5V | |
| Dimensions | approx. 70mm L x 37mm W x 21mm | |
| Nominal Weight | Approx. 110g | |
| One Protection Circuit Module | Overcharge | >4.2V |
| Overdischarge | <2.5V | |
| Current Limit | 7-9 amp (limited by PCM) | |
| Short Circuit | Protection | |
| Thermistor | 10k thermistor NTC | |
| Wiring & Connection | Approximately 4 x 3.5″ in length. 24AWG in Molex housing 874390400 Pin 1 = Red(+) & Pin 2 = Black (- or com), Pin 3=Blue (Therm), Pin 4=Blue (Therm) | |
